GACC  Air cooler cubic compact





Heat Exchanger

  • max. operating pressure up to 80 bar (only CX-units)
  • Staggered tube pattern
  • Internally-ribbed special copper tubes
  • Surface-corrugated aluminium fins for high heat transfer

Casing

  • Corrosion-resistant aluminium alloy AlMg
  • Powder-coated with RAL9003
  • Stainless steel ceiling mounting

Drip tray

  • Separate drip plate
  • Thermally-decoupled tray (condensation free)
  • Condensation drain measuring ¾” and 1¼”

Fans

  • EC fans for high energy efficiency
  • Standard with two speeds (for fan diameter of 500 mm)
  • Motor protection with thermocontacts
  • Up to construction size 450: 230 V, 1~, 50 Hz or 60 Hz
  • Up to construction size 500: 400 V, 3~, 50 Hz or 60 Hz

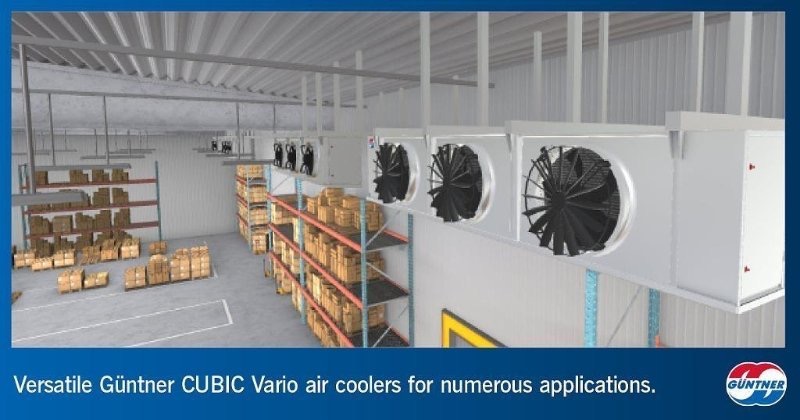

GACV  Air cooler cubic Vario      ෹ GHF , GHN , GGHF , GGHN

Easy to Install

  • Ceiling mounting brackets for easy installation
  • Empty tube for defrost sensor
  • Side cover with hinges and quick-release fastener
  • Schrader valve on outlet

Inspection and Cleaning

  • Hinged tray

HACCP Hygiene Certificate



  • Suitable for rooms used for food processing
  • All materials used approved for foodstuffs
  • Drip tray with edges inclined at 45° angle
  • Easy to clean





Selection software 2022  ( May 2022)  web link ҹҧѺ



https://www.guntner.cn/globalassets/gpc/setup-gpc-ap-2022-01-246.msi



  GACC

  GACV



GACC applications
